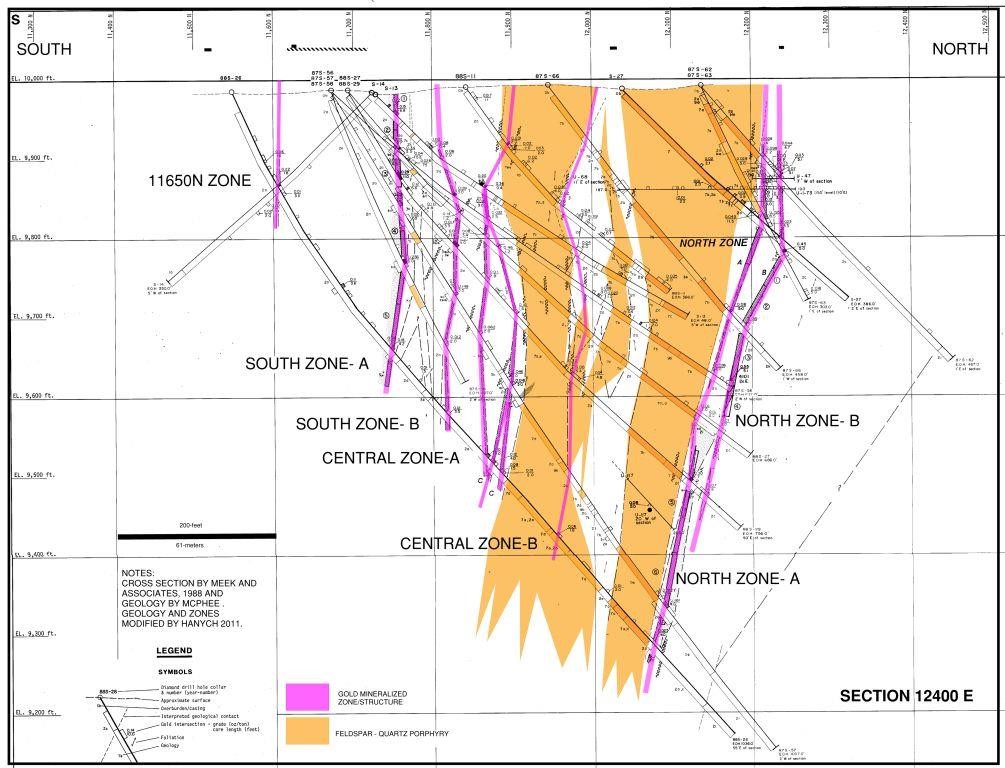

Simplified Vertical Cross Section (section 12400E, looking west) of the 3 main gold-bearing structures (purple) and showing the relationship to the intrusive Quartz Feldspar Porphyry (orange). Source: Signature Resources – NI 43-101 Technical Report on the Lingman Lake Gold Property dated January 31, 2020.
Simplified Vertical Cross Section (section 12400E, looking west) of the 3 main gold-bearing structures (purple) and showing the relationship to the intrusive Quartz Feldspar Porphyry (orange). Source: Signature Resources – NI 43-101 Technical Report on the Lingman Lake Gold Property dated January 31, 2020.
