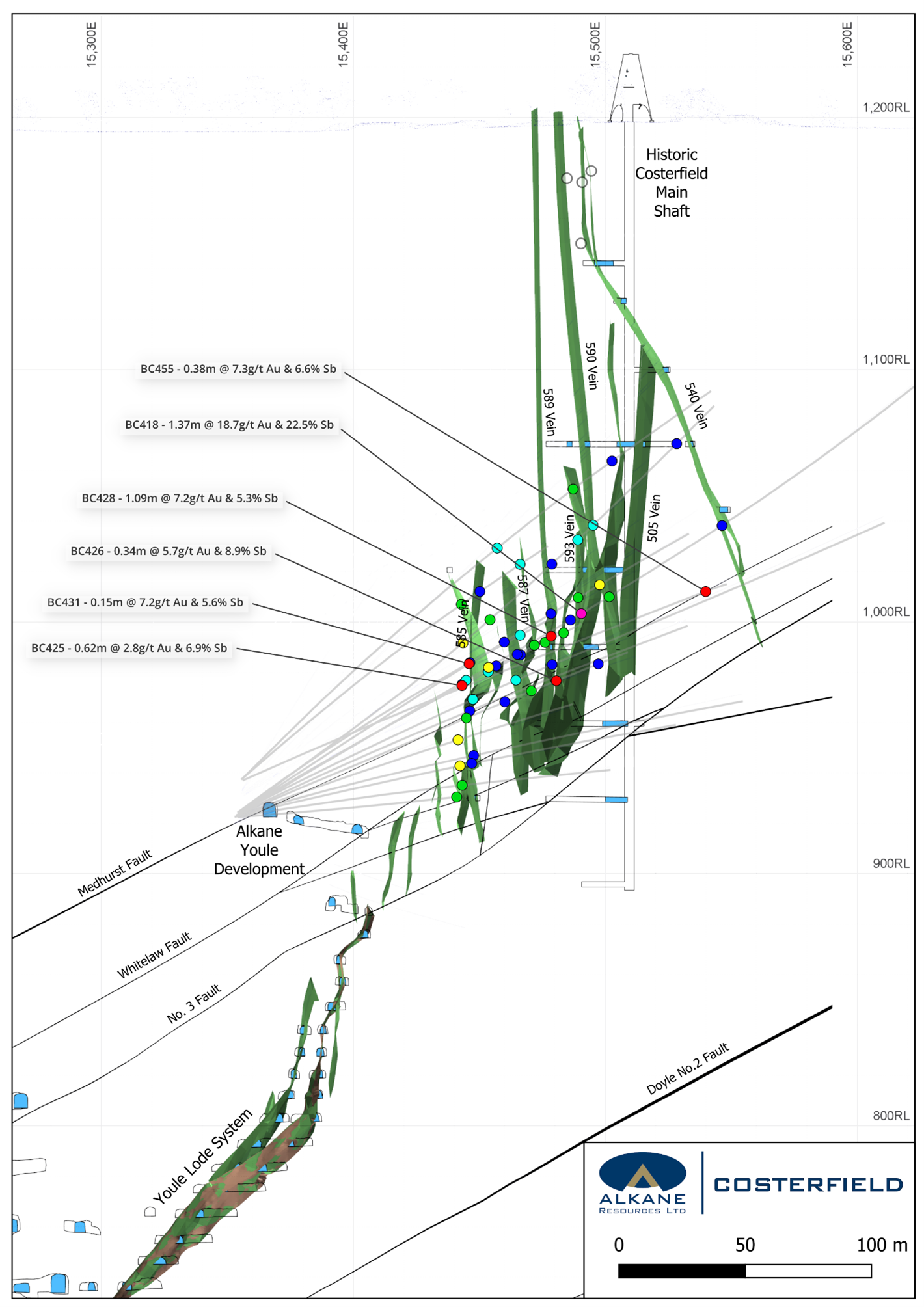

Cross section looking north at mine northing 7120N showing Kendal veins in cross section and drill intercepts between 7000N and 7135N. 2025 drill intersections grading over 10g/t AuEq when diluted to 1.8m are labelled. The historic Costerfield Main shaft and workings can be seen centred at 15,500E, and the modern Alkane development offset to the west and depth. Note the average depth of the Kendal mineralisation ascends to the north with the plunge of the anticline.
