Figure 05

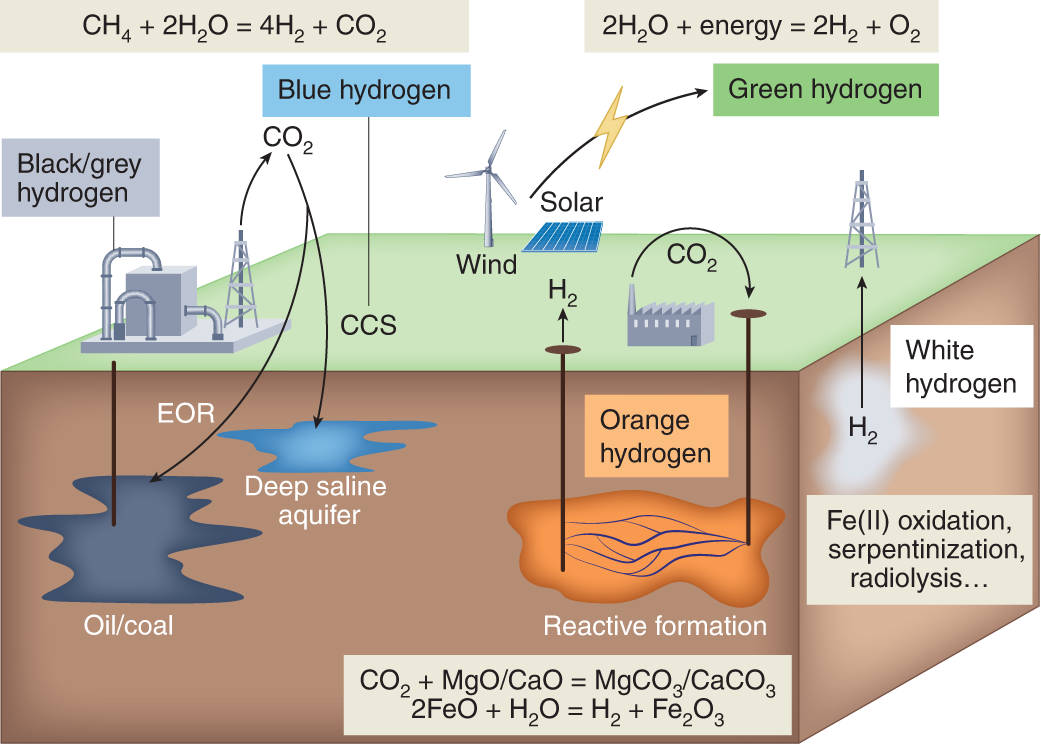

Schematic block diagram highlights the different types of hydrogen generated by natural processes and as industrial byproducts.

Schematic block diagram highlights the different types of hydrogen generated by natural processes and as industrial byproducts.
